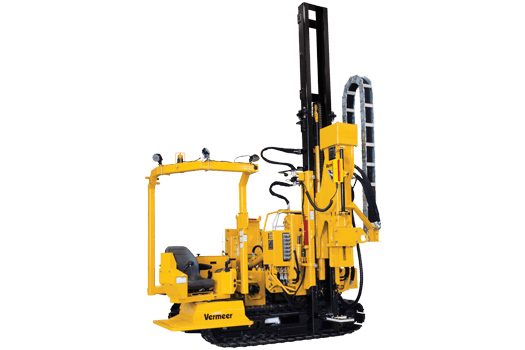

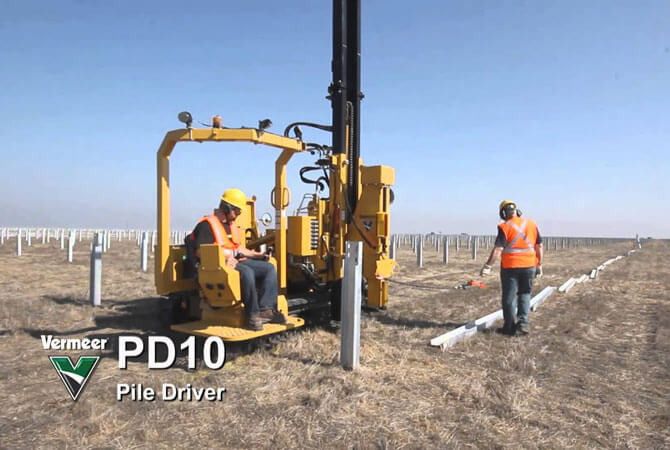

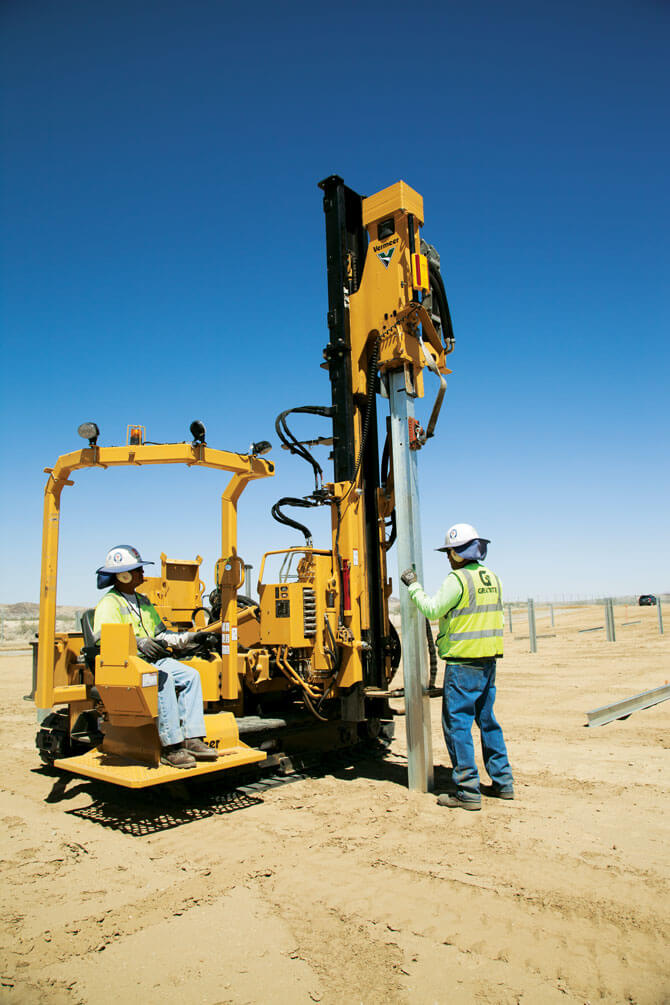

PD10 Pile Driver

Features & Benefits

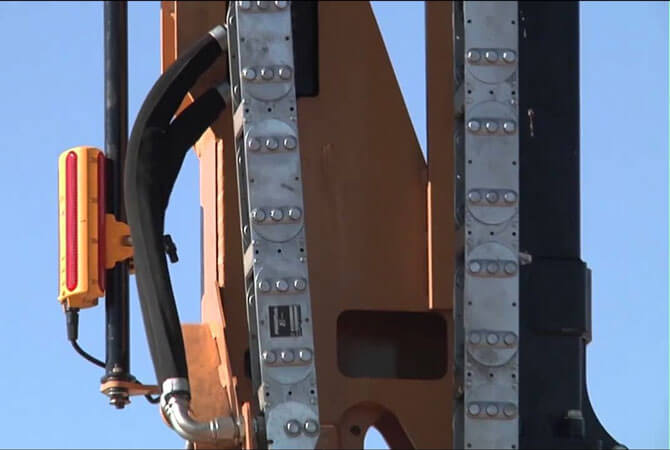

Reduce your cycle time

With auto plumb, the mast automatically moves to a plumb orientation with a touch of a button, reducing both cycle time and out-of-plumb piles.

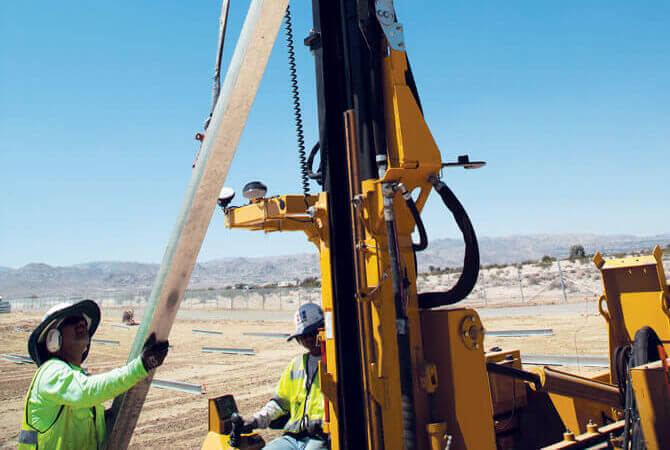

Improve your accuracy

With the capability to accept a number of GPS systems, the PD10 can help reduce surveying time and install piles at the correct location, depth and angle.

Efficient ground drive

With precise ground drive control, operators can spend less time installing each pile, and move efficiently from one pile to the next.

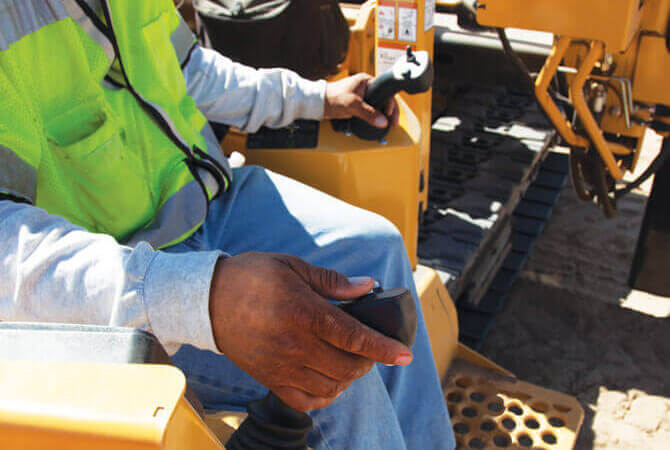

Take control

Dual joystick controls help to implement the above-mentioned features in the fastest and most accurate way.

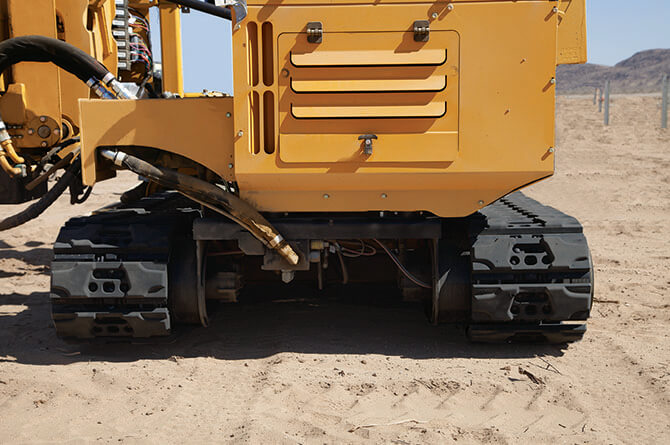

Leave it like you found it

The PD10 features a wide track pad to minimize jobsite disturbance in widely varying ground conditions.

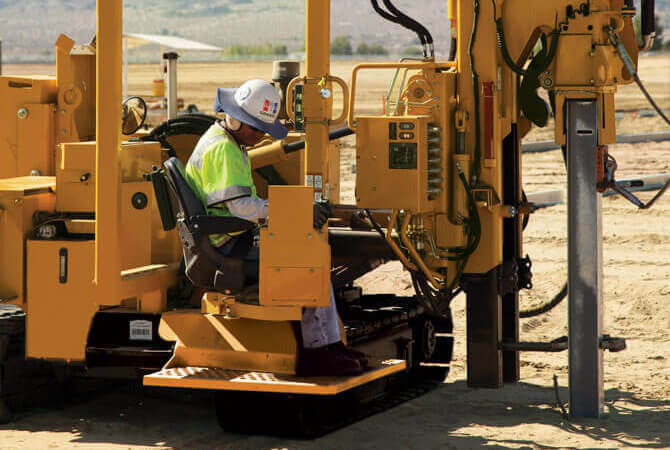

At your fingertips

An industry-unique integrated control system offers the operator a variety of machine information, including pile angle and height. Display also shows machine maintenance information to help maintain service schedules.

Specifications

Compare Models
Show Metric
  • General Dimensions and Weights

    • Maximum operating height - 10' (3 m) mast 14.9 ft 4.5 m
    • Maximum operating height - 15' (4.6 m) mast 19.9 ft 6.1 m
    • Maximum operating height - 20' (6.1 m) mast 24.9 ft 7.6 m
    • Operating weight - 10' (3 m) mast 14135 lbs 6411.5 kg
    • Operating weight - 15' (4.6 m) mast 14320 lbs 6495.4 kg
    • Operating weight - 20' (6.1. m) mast 15980 lbs 7248.4 kg
    • Operating length 10.2 ft 3.1 m
    • Operating width 10.1 ft 3.1 m
    • Transport height - 10' (3 m) mast 106.3 in 270 cm
    • Transport height - 15' (4.6 m) mast 106.3 in 270 cm
    • Transport height - 20' (6.1 m) mast 110 in 279.4 cm
    • Transport length - 10' (3 m) mast 10.2 ft 3.1 m
    • Transport length - 15' (4.6 m) mast 10.2 ft 3.1 m
    • Transport length - 20 ft (6.1 m) mast 122 in 309.9 cm
    • Transport width - 10' (3 m) mast 99 in 251.5 cm
    • Transport width - 15' (4.6 m) mast 99 in 251.5 cm
    • Transport width - 20' (6.1 m) mast 101 in 256.5 cm
  • Operator's Station

  • Engine - Option one

  • Engine - Option two

  • Electrical System

  • Fluid Capacities

  • Ground Drive

  • Hammer

  • Features
