Maxi-rig capabilities, efficiency, low sound and low emissions in a full-equipped drill.

Find A Dealer Request More Info

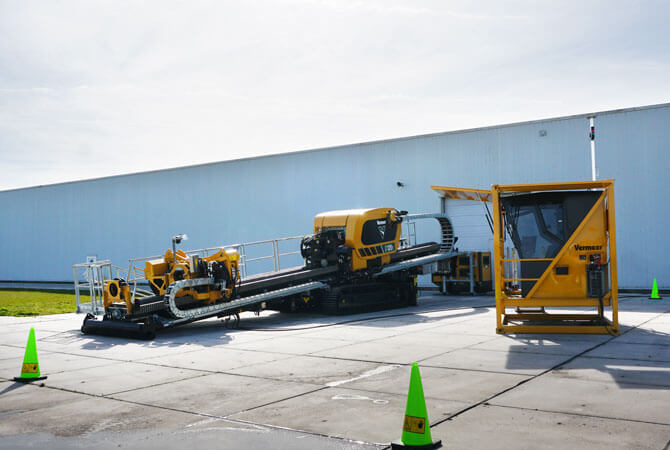

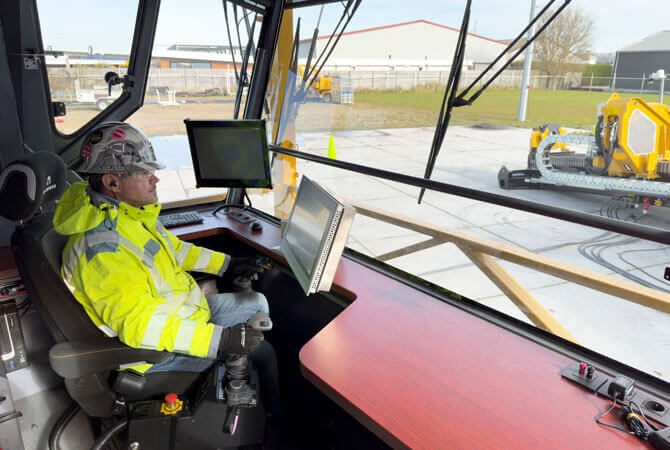

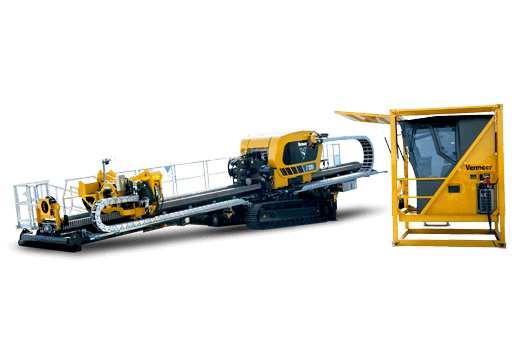

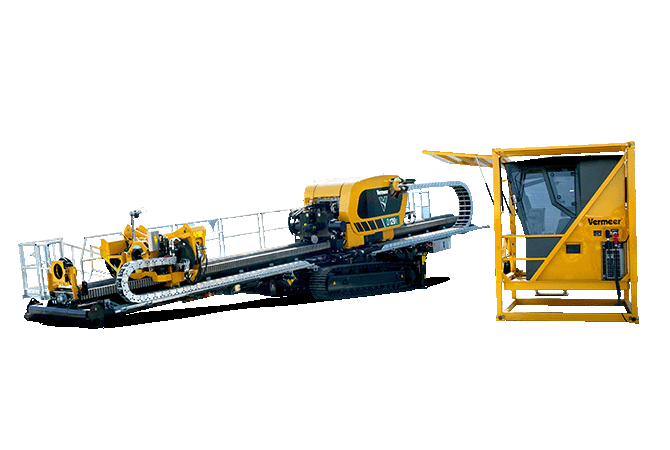

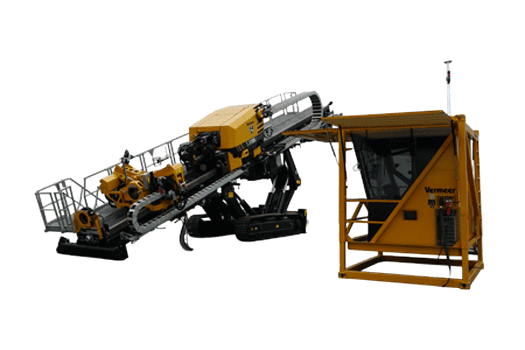

With an outstanding maximum torque of 110 kNm and a maximum pull force of 1.200 kN, the D120E electric HDD can perform challenging pipeline projects and large cable installations with the high efficiency of the direct electric drive. It can be powered by multiple power sources making this drill a champion of flexibility. An extra wide, full-length catwalk runs along a range 2 rack which can be tilted in the range of 5 degrees to 20 degrees. The rack can be quickly detached from the undercarriage making the transport even more flexible. The large vise assembly travels along the full length or the rack and delivers up to 220 kNm of breakout torque and 110 kNm of makeup torque. An optional carriage vise, with a clamp force of 840 kN makes the breaking out of the upper joint extremely easy. The off-board 10 ft (3 m) operator’s cab is equipped with wide windows and extractable legs for optimal visibility, a comfortable seat, wide digital screen, color cameras, capacitive joysticks and air conditioning helps make the drilling experience effective and comfortable. Sound emissions are low with a guaranteed sound power level 102 db(A) making this drill an ideal solution in sensitive natural and urban environments.

Maxi-rig capabilities, efficiency, low sound and low emissions in a full-equipped drill.

With an outstanding maximum torque of 110 kNm and a maximum pull force of 1.200 kN, the D120E electric HDD can perform challenging pipeline projects and large cable installations with the high efficiency of the direct electric drive. It can be powered by multiple power sources making this drill a champion of flexibility. An extra wide, full-length catwalk runs along a range 2 rack which can be tilted in the range of 5 degrees to 20 degrees. The rack can be quickly detached from the undercarriage making the transport even more flexible. The large vise assembly travels along the full length or the rack and delivers up to 220 kNm of breakout torque and 110 kNm of makeup torque. An optional carriage vise, with a clamp force of 840 kN makes the breaking out of the upper joint extremely easy. The off-board 10 ft (3 m) operator’s cab is equipped with wide windows and extractable legs for optimal visibility, a comfortable seat, wide digital screen, color cameras, capacitive joysticks and air conditioning helps make the drilling experience effective and comfortable. Sound emissions are low with a guaranteed sound power level 102 db(A) making this drill an ideal solution in sensitive natural and urban environments. Find A Dealer Request More Info

Features & Benefits

High capability, low consumption

A fully electric 1.200 kN pull force, range 2 horizontal directional drill capable of converting power into meters of successful underground installations. Operates in a wide range of soil conditions with low energy consumption.

High-capability drill

With a maximum torque of 110 kNm, the D120E delivers the hole-making capability comparable to a larger maxi rig. The direct, electric drive results in reactiveness, controllability and scalability of the rig for highly efficient operations.

Extended drill pipe range

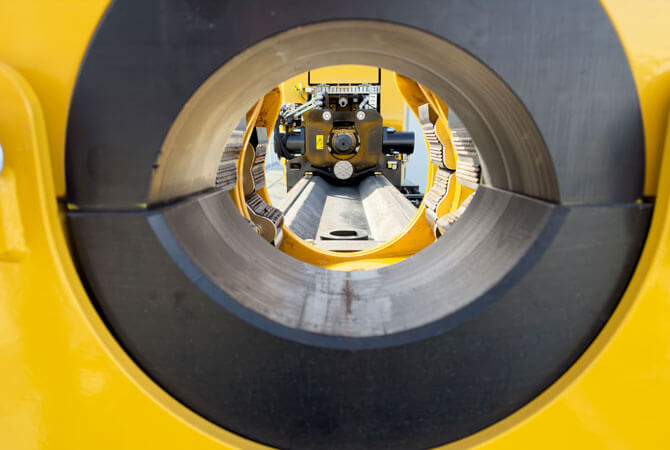

The powerful vise travels along the full length of the rack. With 220 kNm of breakout torque and 110 kNm of makeup torque, the vise makes it possible to use drill pipes up to 7,625-in outer diameter. Thanks to a large passthrough opening, the vise makes it possible to handle tooling and steel casing with an outer diameter up to 406 mm (16-in).

Power on demand

Piloting a 600-m long borehole in soft soil is different than reaming a 48-in borehole in rock. With direct electric drive, you use the power you need when you need it, no more, no less.

Different power sources

You can plug the drill to a genset or to a battery pack to help you perform.

Full control at your fingertips

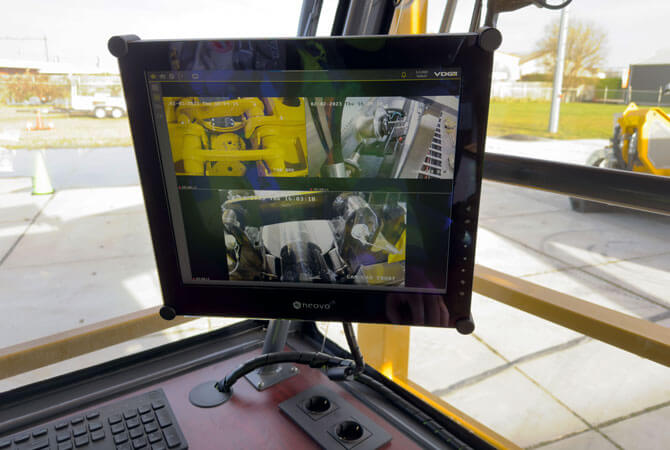

The direct electric drive allows an accurate control over force, speed and position with precise data logging of operational parameters. An intuitive human machine interface (HMI) in combination with last-generation capacitative joysticks make the drilling experience digital.

Specifications

Compare Models
Show Metric
  • Drill Rack

    • Length (Minimum Transport) 50.5 ft 15.4 m
    • Width 8.4 ft 2.6 m
    • Height (Minimum Transport) 10.2 ft 3.1 m
    • Weight 82673 lbs 37499.8 kg
    • Number of Rear Legs Two

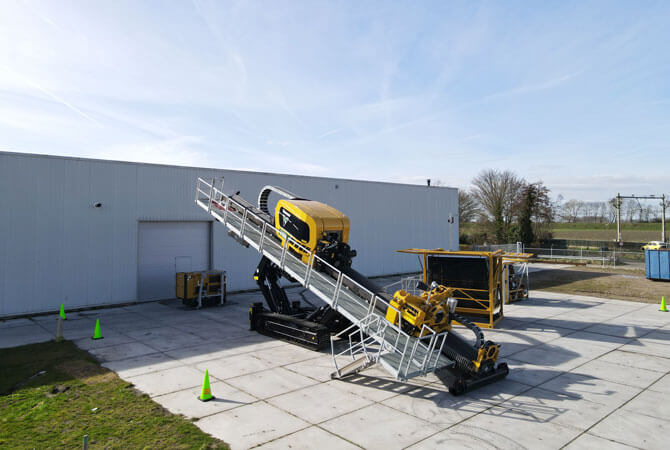

    • Drill Rack Angle 6-20° (10.5-36.4%)
  • Driller Cabin

  • Operational

  • Lower Breakout Vise

  • Carriage Vise

  • Safety

  • Power requirements

  • Features

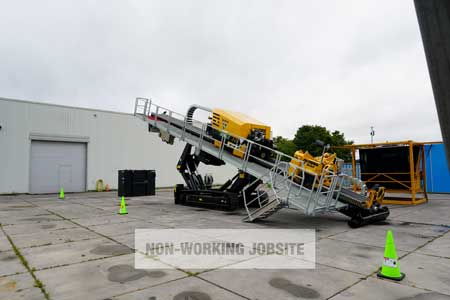

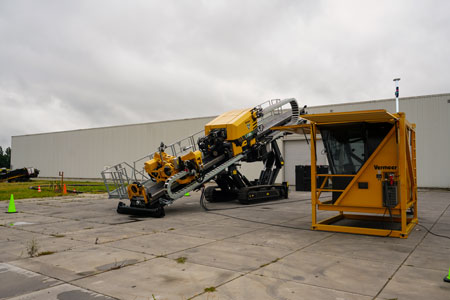

See it in action

Image 1
Image 2
Image 3
Image 4
Image 5
Image 6
