TM1200 Trailed Mower

Features & Benefits

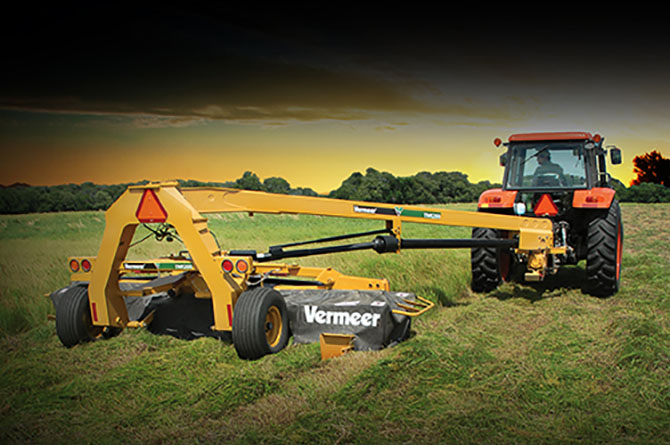

Wide swath mower

Reduce labor and fuel by using one wide swath mower to cut more acres than multiple 3-point mowers.

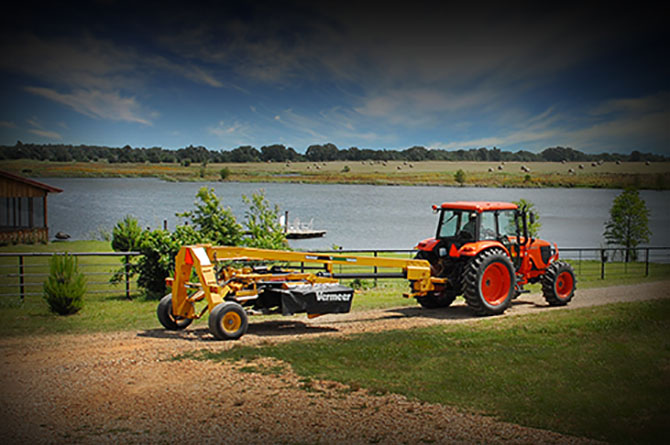

Reduced working width

Maneuvers from field to field easily because the working width of 17 ft 10 in/5 m is reduced to 8 ft 5 in/2.6 m during transport.

Nitrogen-charged accumulator flotation system

Float over fields and contoured terrain with a nitrogen-charged accumulator flotation system that adjusts for varying field and crop conditions and a suspension system that complements the independent cutter bars, allowing each to operate at different levels.

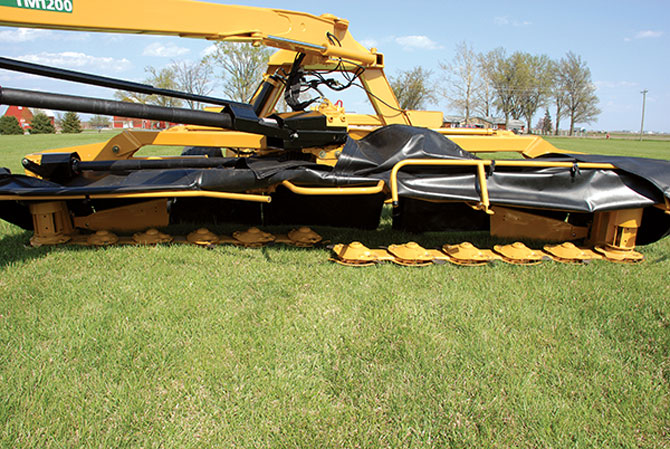

Quick-Clip blade retention system

Enjoy simplified maintenance using the exclusive Quick Clip™ Blade Retention System and flip-up curtains that give you easy access to the cutter bars.

Wide skid shoes and suspension system

Get more protection from unseen obstacles with the wide skid shoes and suspension system that help protect the cutterbars and the friction clutch, which protects the drive system.

Specifications

Compare Models
Show Metric
  • Dimensions and Weights

    • Transport Height 78 in 198.1 cm
    • Transport width - standard 8.5 ft 2.6 m
    • Transport Length 22 ft 6.7 m
    • Cutting Width 15.5 ft 4.7 m
    • Working Height 78 in 198.1 cm
    • Working Width 22 ft 6.7 m
    • Working Length 18 ft 5.5 m
    • Total Weight 5900 lbs 2676.2 kg
    • Tongue Weight 1580 lbs 716.7 kg
    • Suspension Hydraulic
    • Torque Protection Driveline: friction disc clutch
    • Tires 31x13.5-15
  • Tractor Requirements

  • Cutter bar

  • Features
