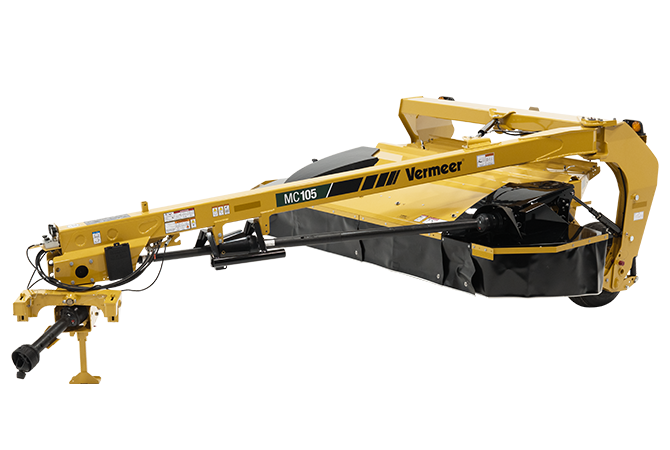

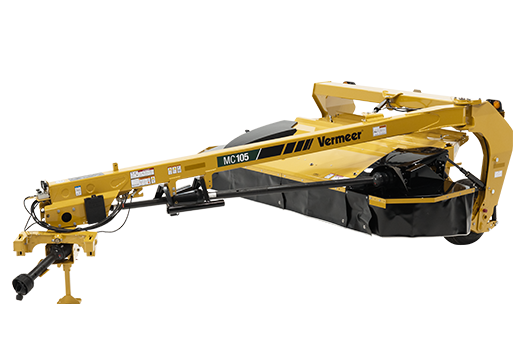

MC105 Mower Conditioner

Features & Benefits

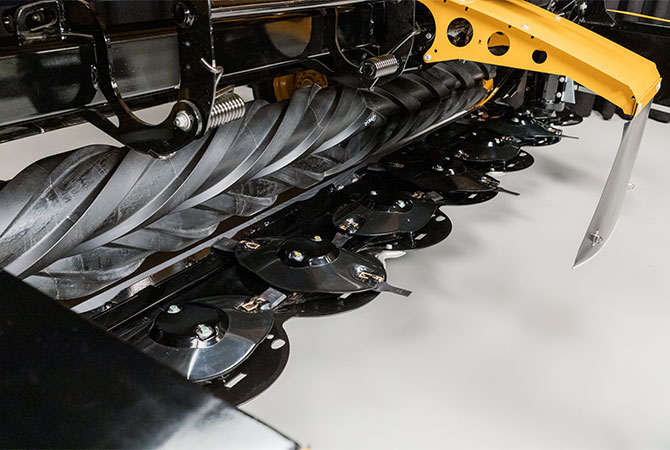

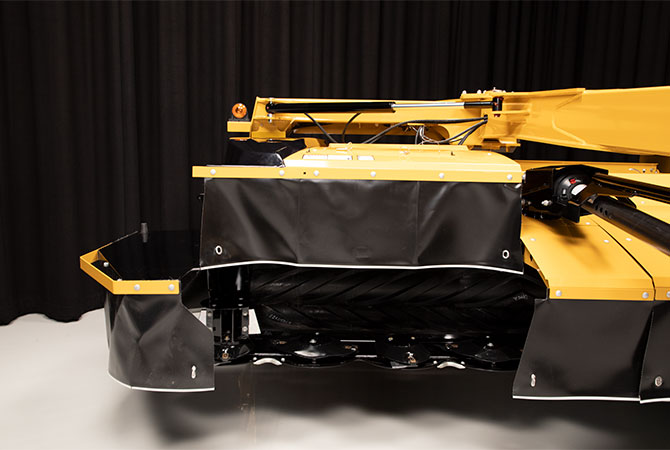

Q3 cutter bar

Convenient maintenance and long-lasting durability come standard with the Q3 cutter bar. Backed by 3-year cutter bar coverage, three features make it quick and convenient to check and replace key components – the Quick-Clip® blade retention system, Quick-Change™ shear ring and quick-check oil for each individual cutter unit.

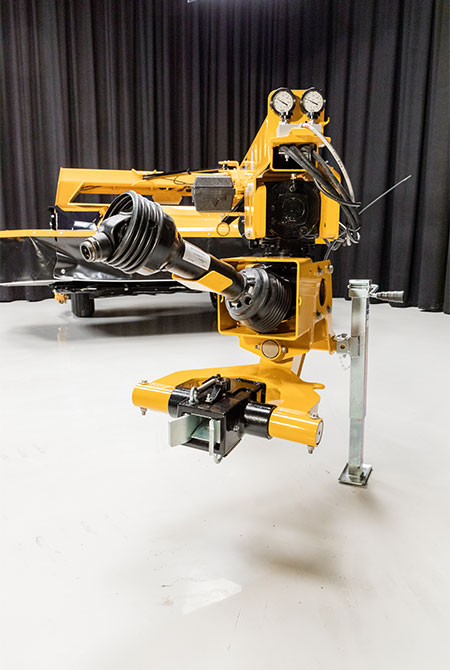

2-point Quick Hitch or drawbar hitch

Say goodbye to a tractor that’s dedicated to only mowing for the summer. Two hitch options provide a simple, one-person hookup – the drawbar swivel hitch or patented 2-point Quick Hitch – both with a balanced pivoting drawbar connection to help you get out to the field in no time.

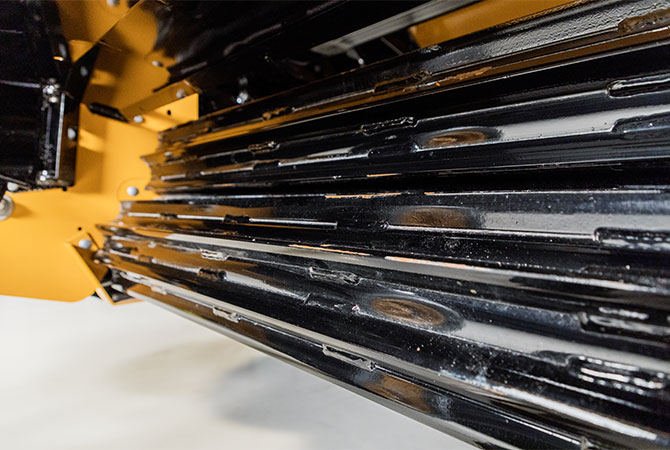

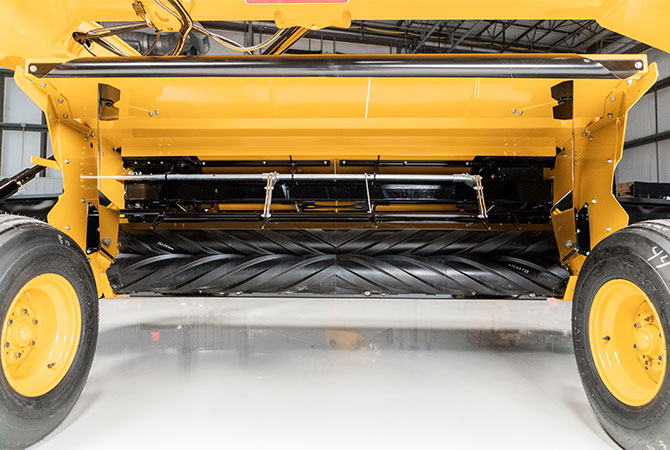

Rubber or steel conditioner

Optimize hay quality with two different types of conditioners to select from for your operation. Steel rollers offer durability and powerful crimping action while rubber rollers focus on leaf retention of the crop.

Hydraulic suspension

Achieve a consistent, clean cut with hydraulic suspension. With this system, operators can conveniently adjust down pressure based on field conditions with the simple twist of a knob.

Hydraulic pitch/tilt adjustment

Adjust to different crops and conditions on the go. Toolless hydraulic pitch adjustment allows operators to change the angle of the blades on the cutter bar to help them achieve maximized yield while minimizing damage to the field.

Topping stop

Looking for a second cut as good as the first? Standard topping stops protect the field by maintaining the integrity of the cutter bar flotation – preventing it from hitting the ground.

Specifications

Compare Models
Show Metric
  • Dimensions and Weights

    • Transport Height 73 in 185.4 cm
    • Transport Width - ends up 9.8 ft 3 m
    • Transport Width - ends down 12.8 ft 3.9 m
    • Transport Length 20.2 ft 6.2 m
    • Cutting Width 10.5 ft 3.2 m
    • Working Height 73 in 185.4 cm
    • Working Width 12.8 ft 3.9 m
    • Mower swung out offset 62 in 157.5 cm
    • Cutter bar lift height clearance 17 in 43.2 cm
    • Total Weight 5140 lbs 2331.5 kg
    • Total weight - roller conditioner 5140 lbs 2331.5 kg
    • Tongue Weight 1340 lbs 607.8 kg
    • Suspension Nitrogen-charged accumulator suspension system
    • Torque Protection Friction over - running clutch — cutter bar; Banded V-belt — rollers
    • Tires 12.5L-15
  • Tractor Requirements

  • Cutter bar

  • Features

  • Roller Conditioner
