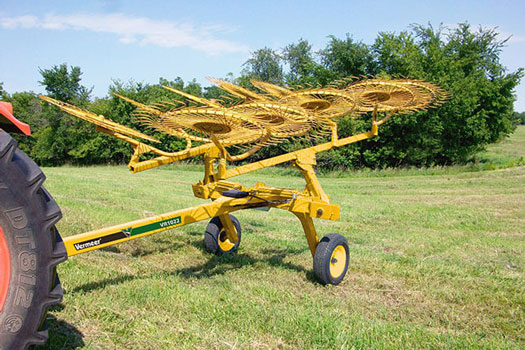

VR1022 Carted Wheel Rake

Features & Benefits

Five wheels per wing

Rake up to 22 ft (6.9 m) in each pass with five wheels on each wing.

Adjustable rake without tools

No tool adjustment because raking width and angle can be changed easily without tools to increase or decrease windrow size.

Greaseable tapered roller bearings

Keep your Vermeer hay rake running smooth with greaseable tapered roller bearings on the rake wheels and transport wheels.

High-clearance frame

High-clearance frame allows for heavy hay crops to pass through easily for windrow formation.

Specifications

Compare Models
Show Metric
  • Dimensions and Weights

    • Raking width minimum 19 ft 5.8 m
    • Raking width maximum 22.6 ft 6.9 m
    • Windrow width minimum 19 in 48.3 cm
    • Windrow width maximum 82 in 208.3 cm
    • Transport Width 10 ft 3 m
    • Transport Length 20.2 ft 6.2 m
    • Transport Height 9.4 ft 2.9 m
    • Total Weight 1520 lbs 689.5 kg
    • Tongue Weight 300 lbs 136.1 kg
    • Transport tire size ST205/75D15
    • Flotation Rubber torsion on toolbar
  • Raking components

  • Tractor Requirements

  • Features

Downloads
