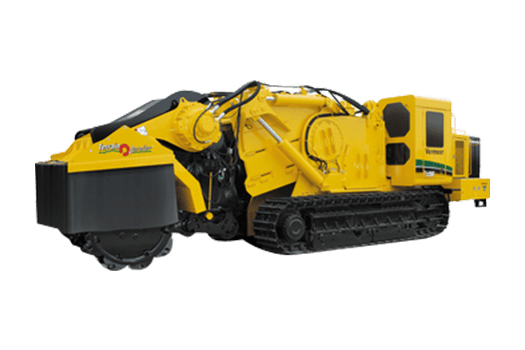

T1255III Chain Drive Surface Miner CE Certified

Features & Benefits

Remote attachment control (RAC)

The T1255III surface miner's RAC allows the operator to remotely start and stop the engine, raise/lower the boom and slowly rotate the chain to observe the cutters while standing away from the digging chain during maintenance or service.

TEC Plus computer-aided control system

Monitor your surface leveler with the exclusive Vermeer TEC® Plus computer-aided control system that communicates with various control modules throughout the machine.

Load control

Load control allows the machine to automatically adjust ground speed to use full engine horsepower, thus maximizing productivity.

Elevated, climate-controlled cab

The elevating cab allows superior visibility and added comfort with the air ride seat. The sealed cab has self-contained heating and air conditioning with sound-attenuating foam. It is also a rollover module (ROM).

High wall capacity

Using a single-drive motor to power the drum allows for the ability to cut an 90-degree high wall compared to the 45-degree high wall when using the dual drive attachment.

Optional warranty

Vermeer Vantage Track Extended Care Service Program offers an optional 3-year/3000-hour or 5-year/5000-hour warranty on the components of the closed-loop hydrostatic system.

Specifications

Compare Models
Show Metric
  • Transport Dimensions

    • Approach Angle 15 deg
    • Height Range 146 (370.8 cm)
    • Length with 50" (127 cm) End Idler and 8 ft (2.44 m) Boom 43 ft 13.1 m
    • Length with 50" (127 cm) End Idler and 10 ft (3.05 m) Boom 45.5 ft 13.9 m
    • Length with 50" (127 cm) End Idler and 12 ft (3.66 m) Boom 48 ft 14.6 m
    • Length with 50" (127 cm) End Idler and 14 ft (4.27 m) Boom (with Restraint Bar) 48.8 ft 14.9 m
    • Length with 50" (127 cm) End Idler and 16 ft (4.88 m) Boom (with Restraint Bar) 51.3 ft 15.6 m
    • Length with 50" (127 cm) End Idler and 18 ft (5.49 m) Boom (with Restraint Bar) 53.8 ft 16.4 m
    • Weight Range 150,000 lb - 205,000 lb (68,039.9 kg - 92,986.4 kg)
    • Width Ranges 134" (340.4 cm)
  • Engine - Option one

  • Engine - Option two

  • Tracks

  • Attachments

  • Cab

  • Hydraulic System
