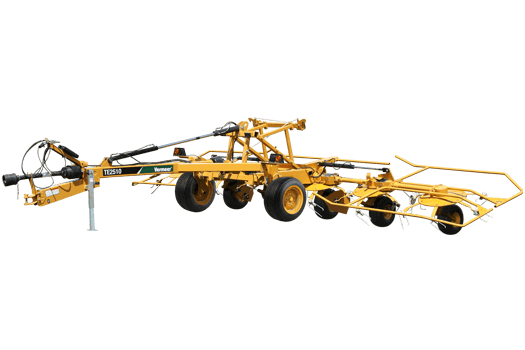

TE2510 Tedder

Features & Benefits

Hook tines

Hook tines staggered in length are designed to help wet crop on bottom be gently placed on top for a quick, consistent dry down.

Heavy-duty, solid-frame construction

Designed and built in North America for farmers and ranchers in North America. Heavy-duty, solid-frame construction provides stability and durability, while the radial pin clutch protects the drive components and center gearbox. The reinforced tongue offers longevity to help 10-series tedders perform year after year.

Large, durable tires

Large, durable tires supported by strong spindles allow for ground contouring and flotation with quiet and convenient transport from field to field.

Adjustable basket angle and height

Convenient adjustments to basket angle and height allow operators to match the field and crop conditions.

Specifications

Compare Models
Show Metric
  • Dimensions and Weights

    • Tedding width 25 ft 7.6 m
    • Transport Height 9.8 ft 3 m
    • Transport Width 9.8 ft 3 m
    • Transport Length 15.3 ft 4.7 m
    • Total Weight 3200 lbs 1451.5 kg
    • Tongue Weight 900 lbs 408.2 kg
    • Tire size 18.5 x 8.5-8
    • Transport tire size 11L-15 8
    • Basket tilt and adjustment Hydraulic, adjustable by changing wheel frame/main frame mount
    • Number of Baskets 6
    • Tine Arms per Basket 6
    • Type of Tine Hook tine
    • Torque protection driveline Radial pin clutch
  • Tractor Requirements

  • Features
