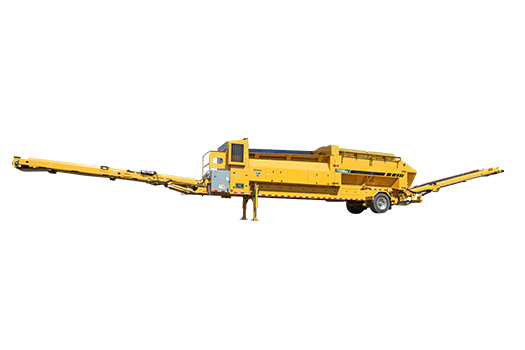

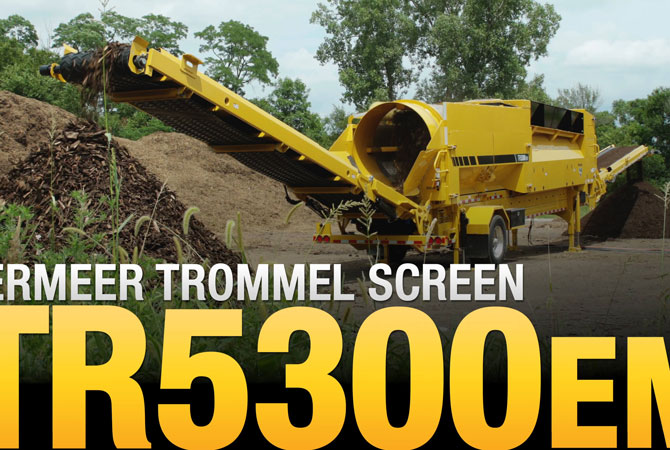

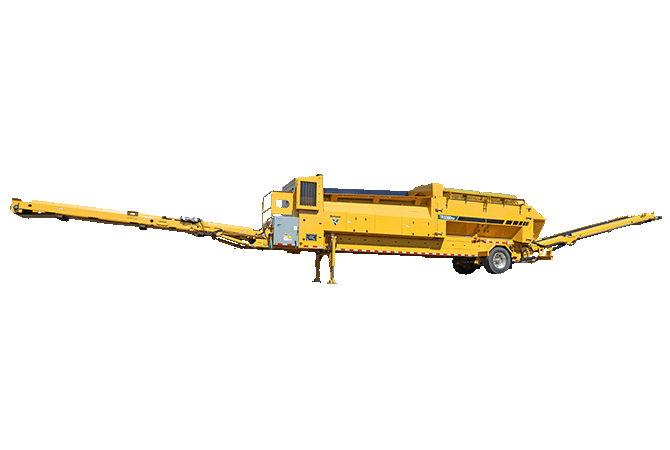

TR5300EM Trommel Screen

Features & Benefits

Tension screen design

The ability to adjust the screen quickly will allow operators to change opening size, wire gauge and type of wire so you can separate a wide variety of material.

Advanced controls

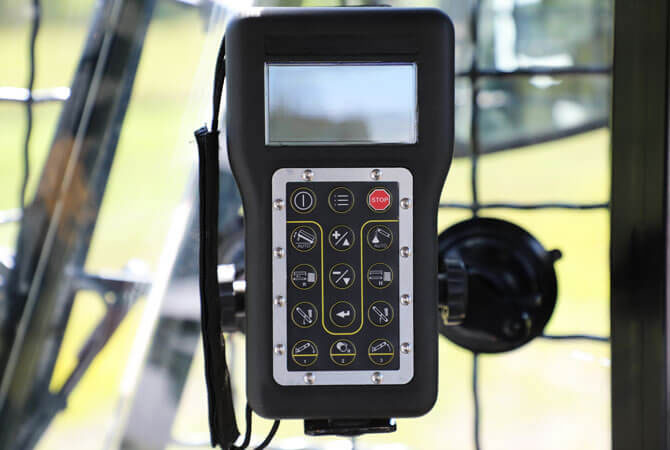

Operators can control the machine through a Vermeer DP10 display mounted on the control panel, or through a handheld transceiver remote.

Electric motor

The TR5300EM is powered by an industrial-duty, fully enclosed and fan-cooled electric motor. A single 60-hp (44.5-kW) motor powers the hydraulic pump stack. Electric motors reduce exhaust emissions, jobsite noise and maintenance compared to diesel.

Access to critical points

Access to critical points on the machine allows for efficient maintenance on components such as motor, trommel drum and drum drive.

Hydraulic-driven chain drive system

A hydraulic-driven chain drive system allows the drum to be lifted off the cog for service, and bolt-on sprockets can be changed quickly to help lower repair time.

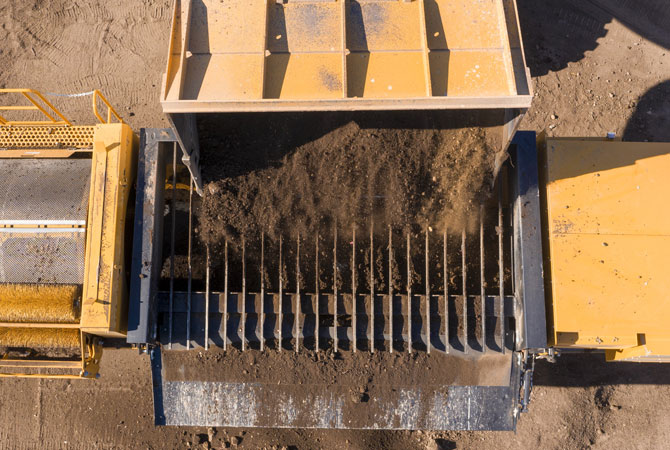

Large, low-feed hopper

The TR5300EM features a large, low-feed hopper for ease of loading without a loading ramp, maximizing jobsite mobility.

Specifications

Compare Models
Show Metric
  • General Dimensions and Weights

    • Weight 32000 lbs 14515 kg
    • Hitch Weight 11600 lbs 5261.7 kg
    • Transport Length 39 ft 11.9 m
    • Transport Width 98.4 in 249.9 cm
    • Transport Height 13.4 ft 4.1 m
    • Operation Length 89.9 ft 27.4 m
    • Operation Width 112.8 in 286.5 cm
    • Operation Height 15 ft 4.6 m
    • Capacity 100 cu yd (76.5 m3) per hr with 0.5-in (12.7-mm) screens installed and material with moisture less than 40%
  • Motor Option One

  • Hydraulic System

  • Chassis

  • Hopper and Apron Conveyor

  • Screen Drum

  • Screen Brushes

  • Fines Conveyor

  • Overs Conveyor - Option 1

  • Overs Conveyor - Option 2
