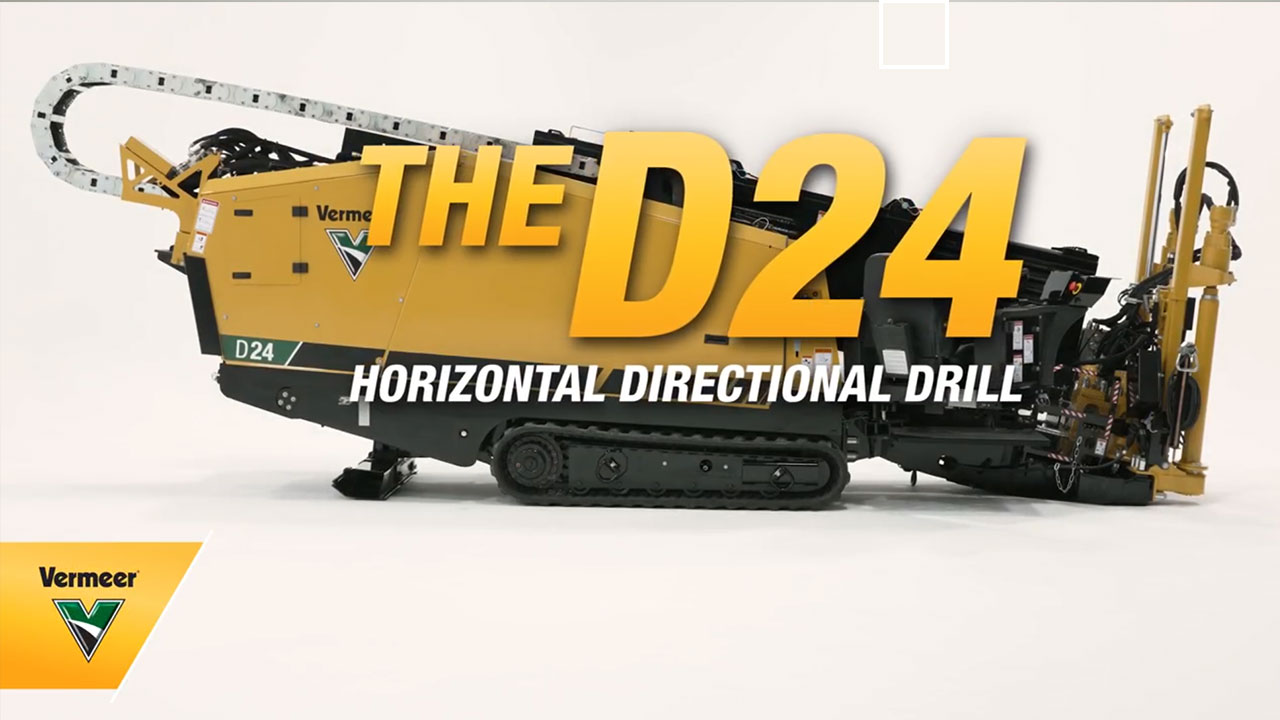

D24 HDD CE Certified

Features & Benefits

Intelligent on-rig diagnostics

Get ahead of the game with technology that helps deliver more uptime with specific diagnostic explanation and prescriptive troubleshooting steps right to the operator's fingertips.

Easy and automated rod exchange

A single button push completes the entire rod changeout sequence, eliminating up to 19 steps, giving operators from various skill levels more time for more rod in the ground.

Drill longer in harder ground conditions

Optional class-leading rod capacity to bore further with 480 ft (150 m) of rod on board without having to get off the machine. A 45-gpm (170-L/min) mud pump increases fluid flow rate, helping you ream quickly and pull large product faster.

Patented, sliding, open-side vise

Minimize the number of steps to change out a rod with this patented vise design. The vise utilizes sliding, open-side functionality, which allows you to see the rod joint.

Fit in congested jobsites

The D24 is 56-in (142-cm) wide and 16,380 lb (7,430 kg), making it the narrowest footprint machine in its class size while maintaining stability for various ground conditions.

100-hp CAT Engine

The drill is equipped with 100-hp (75-kW) CAT 3.6L Stage V engine. Two 800 CCA batteries improve cold start capability.

Specifications

Compare Models
Show Metric
  • General Dimensions and Weights

    • Length (Minimum Transport) 224 in 569 cm
    • Width (Minimum Transport) 56 in 142.2 cm
    • Height (Minimum Transport) 89 in 226.1 cm
    • Weight 16380 lbs 7429.8 kg
    • Angle of Approach 18 deg
  • Engine

  • Operational

  • Fluid Capacities

  • Hydraulic System

  • Drilling Fluid System Option One

  • Features

  • Drill Pipe

  • Drill Pipe Option Two
