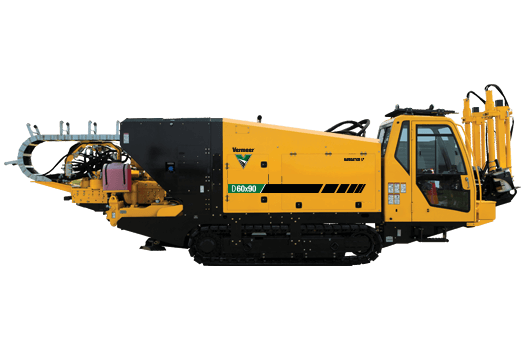

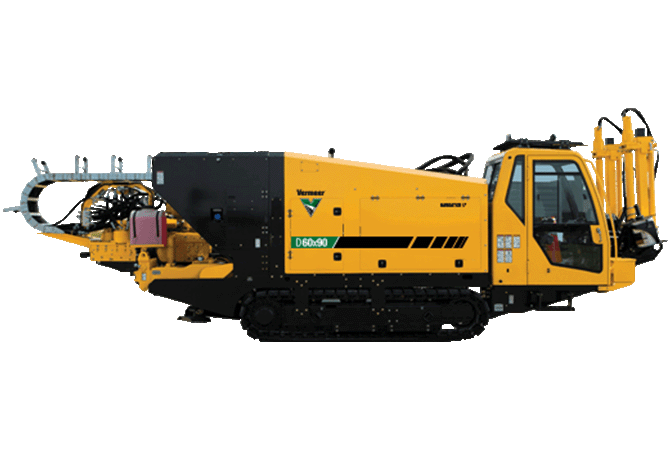

D60x90 S3 HDD CE Certified

Features & Benefits

Impressive size

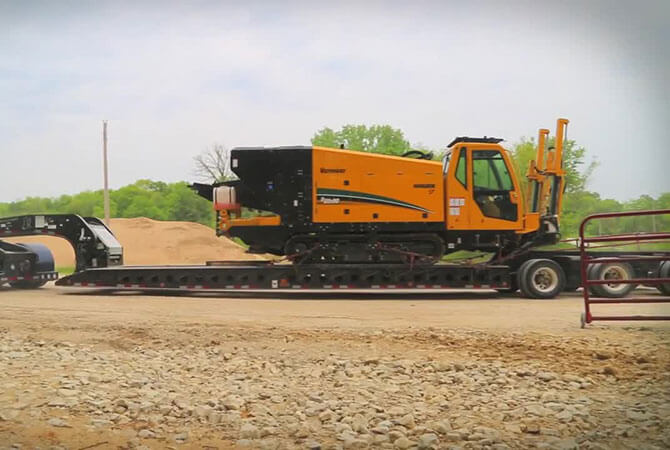

Modest footprint of just 100-in (254-cm) transport width and 26-ft (7.9-m) length makes it right for a range of installation specifications — even in congested urban jobsites.

Increased power

Up to 60,000 lb (226.9 kN) of thrust and pullback and 9250 ft-lb (12,202.4 Nm) of rotational torque helps you get the job done faster.

Significantly quieter

Guaranteed sound power rating of just 107 dB(A) – 12 dB(A) lower than its predecessor the D60x90 – resulting in reduced noise at operator’s ear [83 dB(A)], increased operator comfort and less noise disturbance in residential or urban areas.

DigiTrak® Aurora® touchscreen display

New interactive, full-color DigiTrak® Aurora® touchscreen display allows operators to load the bore plan via flash drive and view it on screen — eliminating hard copy plans.

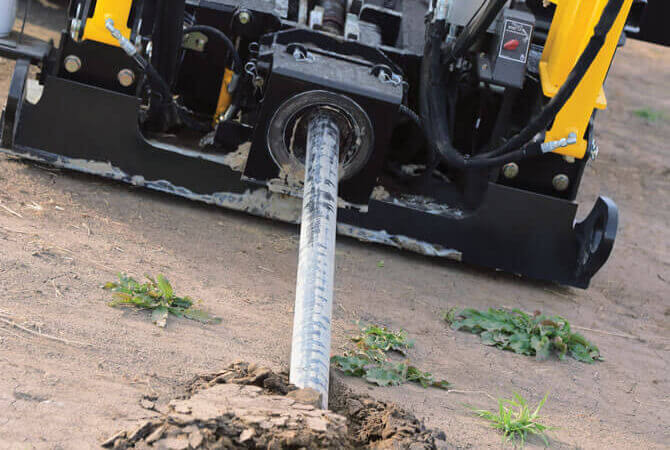

Large open-top vise

Large open-top vise design allows passage of larger tooling for ease of tool removal and installation.

Convenient rod loading

Popular and proven rod loader design provides easy and reliable performance.

Specifications

Compare Models
Show Metric
  • General Dimensions and Weights

    • Length (Minimum Transport) 354 in 899.2 cm
    • Width (Minimum Transport) 90 in 228.6 cm
    • Height (Minimum Transport) 104 in 264.2 cm
    • Height (With Cab) 104 in 264.2 cm
    • Weight 42150 lbs 19118.9 kg
    • Angle of Approach 18 deg
  • Engine

  • Operational

  • Fluid Capacities

  • Hydraulic System

  • Drilling Fluid System Option One

  • Features
