VR1022 车挂轮式搂草机

Features and Benefits

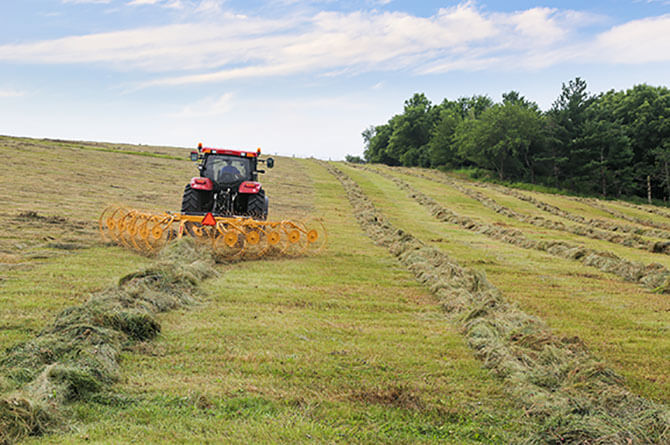

Vermeer VR1022 carted wheel rake
Help keep your equipment running smoothly with greaseable tapered roller bearings on both the rake and transport wheels for reduced friction and longer lifespan.
Enable single-side raking in seconds without any tools by selecting either left- or right-side raking configurations.

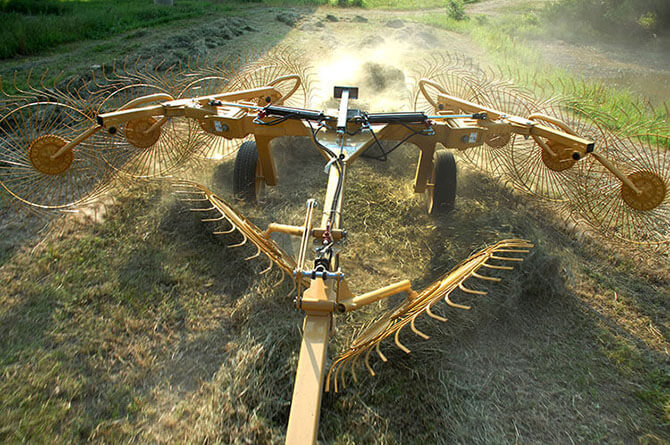

Consistent dry down — even in the center swath — can be achieved with the optional center splitter’s dual-angled, ground driven rake wheels. This feature splits the crop to allow for more air flow in the windrow.

技术规格

比较型号
显示公制
  • 尺寸和重量

    • 最小搂草宽度 19 ft 5.8 m
    • 最大搂草宽度 22.6 ft 6.9 m
    • 最小草槽宽度 19 in 48.3 cm
    • 最大草槽宽度 82 in 208.3 cm
    • 运输宽度 10 ft 3 m
    • 运输长度 20.2 ft 6.2 m
    • 运输高度 9.4 ft 2.9 m
    • 总重 1520 lbs 689.5 kg
    • 牵引杆重量 300 lbs 136.1 kg
    • 运输轮胎尺寸 ST205/75D15
    • 浮动装置 伸缩杆橡胶扭力
  • 搂草组件

  • 拖车要求

  • 功能
