HDD tooling

Download the BORESTORE® catalog

With unique challenges on every jobsite, you need quality HDD tooling that’s built to handle the conditions you work in. Vermeer offers a full range of durable HDD tooling and accessories that are designed for specific ground conditions, high-torque applications and more. Our precision threading, high-end carbide layering technology and efficient connections are rigorously tested to get you through tough jobs year-round. HDD tooling can be purchased through your local Vermeer dealer, or visit our BORESTORE® HDD tooling and accessories warehouse at borestore.com or borestore.eu for customers in Europe.

Drill rods

Firestick® drill rod

A close up image of the end of a Firestick drill rod

Vermeer Firestick drill rod has earned a reputation in the industry for strength and consistent quality. Firestick drill rods are made from forged and heat-treated, high-carbon alloy steel. The robust threads and double-shouldered design stand up in high-torque applications, while maintaining a large inside diameter to maximize drilling fluid flow.

Silver Series™ drill rod

Close up of three silver series drill rods

When straightforward, less-aggressive projects require a budget-conscious option, there’s the new Silver Series drill rod. Comprised of one-piece forged, S135 grade steel, and threaded in the same state-of-the-art facility (located in the U.S.) as the Firestick drill rod, it is designed for moderate steering applications. Together, the Firestick drill rod and Silver Series drill rod provide trusted options for any project.

View firestick drill rods at BORESTORE.com

View silver series drill rods at BORESTORE.COM

Drilling systems

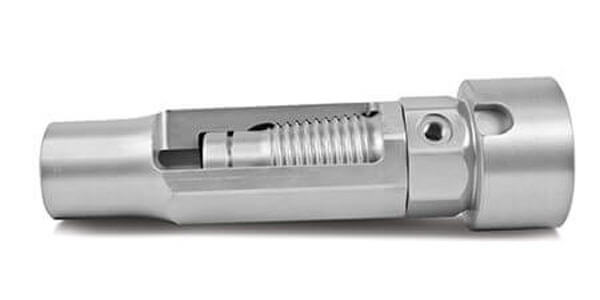

QuickFire® HD connection system

The quickfire HD drilling system for horizontal directional drilling

The QuickFire HD system offers ease of use and reliability-minded features, including dual heavy-duty collar retention roll pins. The collar can be assembled at any orientation — eliminating the need to rotate the collar for alignment with the retention bolt hole. While the QuickFire HD system shares the same thread profile as the original system, the patented pin design helps transfer bending loads away from the thread profile to help extend wear life.

Ultra X3 drilling system

Multiple parts of the Ultra X3 drilling system

The Vermeer Ultra X3 offers interchangeable pilot and pullback tooling without torqued or threaded components, as well as the ability to ream directly off the transmitter housing. And (for certain applications), it can eliminate the expense of starter rods and adapters. The Ultra X3 has a strong spline connection capable of handling the torque of reaming diameters up to 10 in (25 cm) directly off the transmitter housing in most conditions.

Shop the Quickfire HD connection system at Borestore.com

Shop the Ultra X3 drilling system on BORESTORE.COM

VERMEER RIGFITTER

Simplify your search and find tooling that fits your drill and rod using the Vermeer RigFitter

Build your dream drill string

Reamers

Fluted

A black fluted reamer for horizontal directional drilling

Vermeer fluted reamers conquer the job with a robust through-shaft design and heat-treated, cast-alloy steel for durability. Vermeer fluted reamers include robotically applied carbide mesh grit for extended life. Available with rotary or shark teeth to create an aggressive cutting action and ideal for rugged ground conditions ranging from hard pan and soft rock to cobble.

Mix Master™ HD

A mix master hd reamer for horizontal directional drilling

The Vermeer Mix Master HD reamer is built on an API Reg Box x Pin. Thick, gusseted plates improve durability and feature open sections (on applicable sizes) to improve mixing and fluid flow. Rotary teeth aid in increasing durability of the MXHD and are placed in a progressive pattern to create a smooth, spiral cutting action throughout. Fluid ports located within the plates face forward and rearward allowing greater fluid distribution to maintain bore integrity, hydrate the bore path and clean rotary teeth.

Shop fluted reamers at BORESTORE.COM

Shop Mix Master HD Reamers at Borestore.com

Supreamer

A black vermeer supreamer reamer used for horizontal directional drilling

Take on the big jobs with the Supreamer reamer’s mixing action — made possible by its open-bodied design and ruggedly large paddles. Includes front and rear-facing oversized carbide shark teeth tooling for aggressive cutting action and ease of pushback when the job demands it.

T-REX

A black T-REX reamer made by Vermeer for horizontal directional drilling

Take a bite out of tough conditions. Ruggedly constructed with work-hardened, high-alloy steel, this reamer incorporates a unique, steep, rear-tapered design for ease of pushback for the tough jobs. Optional built-in swivel or through-shaft designs are available. High-wear areas are made to last with a resilient carbide mesh grit hardfacing. Equipped with oversized shark teeth tooling for aggressive, yet smooth, cutting action, the T-REX reamer is ready for cobble, chunk rock and soft rock.

Shop supreamer reamers at BORESTORE.COM

Shop T-REX reamers on BORESTORE.COM

Drill bits

Ace™ bits

A cut out image of a black Vermeer ace bit



Vermeer offers an extensive selection of Ace bits designed for various soil and ground conditions. Vermeer Ace bits are designed with durability and wear-ability in mind. The plug-style tooth design of the Ace bit allows teeth to be positioned closer to each other to help maximize carbide coverage for extended wear-life.



Shop Ace Bits at Borestore.com

A cut out image of a black Vermeer standard ace bitThe Vermeer Ace™ Standard directional drill bit offers increased durability, longevity and wearability to horizontal directional drilling contractors who need an all-around ground solution.

The Ace™ Pro Extreme bit continues the Ace bit legacy for performance in tough ground conditions. With carbide teeth along both edges, the Ace Pro bit Extreme features twice the coverage of the Ace Pro bit for extended wear life. Individual, dome-style carbide teeth are designed to absorb the shock of hard conditions while the narrow bottom (NB) allows the teeth to be positioned close together, minimizing exposure to the bit body and helping retention deep into the wear life.

A cut out image of a black Vermeer Ace Pro Drill bitThe Vermeer Pro Ace™ directional drill bit is a step up from our standard Ace bit, offering even greater durability, longevity and wearability to horizontal directional drilling contractors who need an all-around ground solution.

A cut out image of a black Vermeer premium ace bitThe Vermeer Premium Ace™ directional drill bit is our best Ace bit, offering superior durability, longevity and wearability to horizontal directional drilling contractors who need a tool for high risk, aggressive ground conditions.

Gladiator bits



Vermeer offers an extensive selection of Gladiator bits designed for various soil and ground conditions. Vermeer Gladiator bits are engineered with durability and wear-ability in mind. These bits feature oversized carbide buttons to minimize premature wear.


Shop Gladiator Bits at Borestore.com

The Vermeer Gladiator Club bit brings you the power of our exclusively designed oversized carbide buttons for wear resistance. This versatile series is ideal for cobble and highly abrasive ground conditions.

A cut out image of a yellow Vermeer gladiator mallet bitSteer into the clear with the Gladiator Mallet bit. It features the Gladiator-exclusive bit design with oversized carbide buttons for wear resistance as its flat face helps maximize steering control. It’s ideal for cobble and highly abrasive ground conditions.

A cut out image of a yellow Vermeer gladiator saber bitThe Gladiator Saber bit features an aggressive tapered design for penetrating hard-packed soil conditions. It includes the Gladiator bit standard of carbide buttons to help extend wear life, making it ready for highly abrasive ground conditions.

A cut out image of a yellow Vermeer gladiator spear bitThe Gladiator Spear bit is exclusively designed with oversized carbide buttons to help reduce premature wear — with a rugged, pointed design. The Gladiator Spear bit lets you battle compatible ground conditions from loam to cobble and other highly abrasive soil.
