CTX100 Mini Skid Steer

Features & Benefits

40-hp (29.8-kW) turbocharged Kohler KDI diesel engine

Equipped with a 40-hp (29.8-kW) turbocharged Kohler KDI diesel engine. This engine meets emission compliance without the need for a diesel particulate filter (DPF), reducing cost and complexity of the engine.

Flexible track configurations

A wide or narrow track configuration is available to meet your needs.

Integrated display

The integrated display provides the operator machine information such as engine hours, battery voltage and engine oil pressure.

Efficient lift capacity

The CTX100 is equipped with exceptional lift capacity to efficiently transport materials on tough jobsites.

Wraparound platform

Built for comfort, the unit is designed with a wraparound platform to provide extra space and stability while operating.

High standards

The CTX100 comes standard with a dual hydraulic system capable of providing 15.5 gpm (58.7 L/min) of hydraulic flow to power the most demanding attachments, and low flow offers 8.1 gpm (30.7 L/min) to give maximum control.

Specifications

Compare Models
Show Metric
  • General Dimensions and Weights

    • Design Stand-on/Track drive
    • Length with Standard Bucket 111.5 in 283.2 cm
    • Length without Standard Bucket 89.5 in 227.3 cm
    • Width with Standard Bucket 42 in 106.7 cm
    • Width Without Standard Bucket 36 in 91.4 cm
    • Height 58 in 147.3 cm
    • Height (to Hinge Pin) 88 in 223.5 cm
    • Ground Clearance 6.8 in 17.1 cm
    • Weight (Standard Bucket, Diesel Engine) 3515 lbs 1594.4 kg
    • Weight (No Bucket, Diesel Engine) 3400 lbs 1542.2 kg
  • Engine - Option one

  • Track Performance

  • Operational

  • Hydraulic System

Attachments

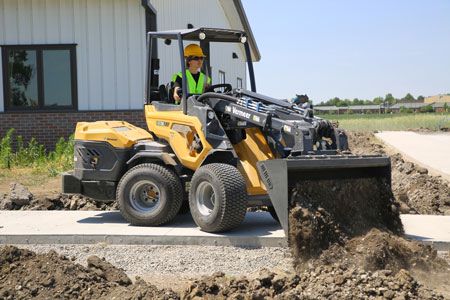

4-in-1 bucket

4-in-1 bucket

    • Model Name 4-in-1 Bucket
    • Width 42.5 in 108 cm
    • Weight 268 lbs 121.6 kg
    • Fill Capacity 5 cu ft .1 cu m
